Plastic Fans for Corrosive
Environments

Reliable Fans for Corrosive Applications

Not every application requires fiberglass-reinforced plastic (FRP). For many environments, plastic fans deliver the performance, safety, and value you need – especially where corrosion resistance is essential. Verantis® offers a full line of plastic fans built to withstand harsh conditions, including ATEX-certified models for use in potentially explosive areas (Zones 1 and 2). Engineered to minimize static charge and sparks, these fans maximize both safety and efficiency.

PLASTIC FAN MODELS AND OPTIONS

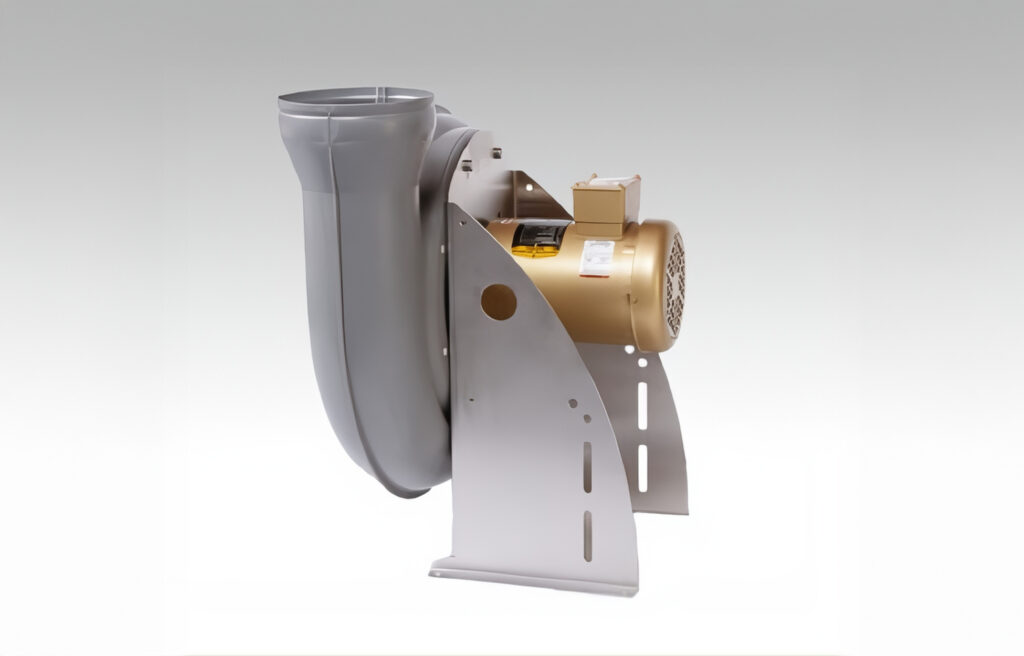

  • CDD Fans – Direct Drive Centrifugal

    • Handles 50 to 6,000 CFM, max 10" SP
    • Available in nine sizes with CW & CCW rotations
    • Offers six discharge positions
    • Available in PVC, PP, PPs-EL (spark resistant) with optional XP motors

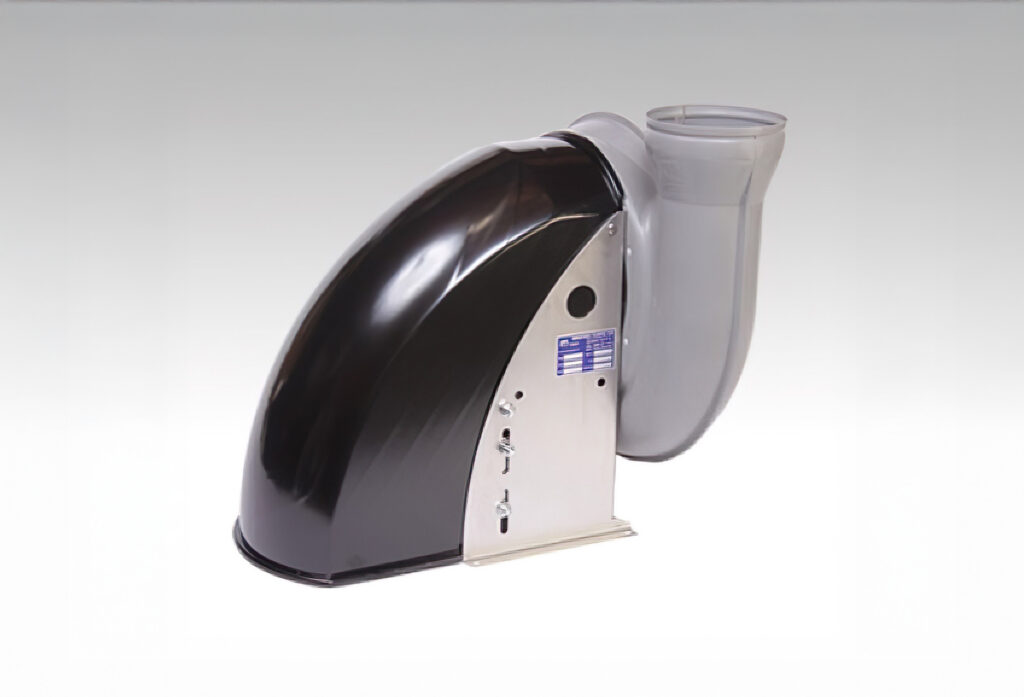

  • CMV Fans – Belt Drive Centrifugal

    • Handles 50 to 6,000 CFM, max 10" SP
    • Supports nine sizes, CW & CCW rotations
    • Offers six discharge positions
    • Available in PVC, PP, PPs-EL (spark resistant), with optional XP motors

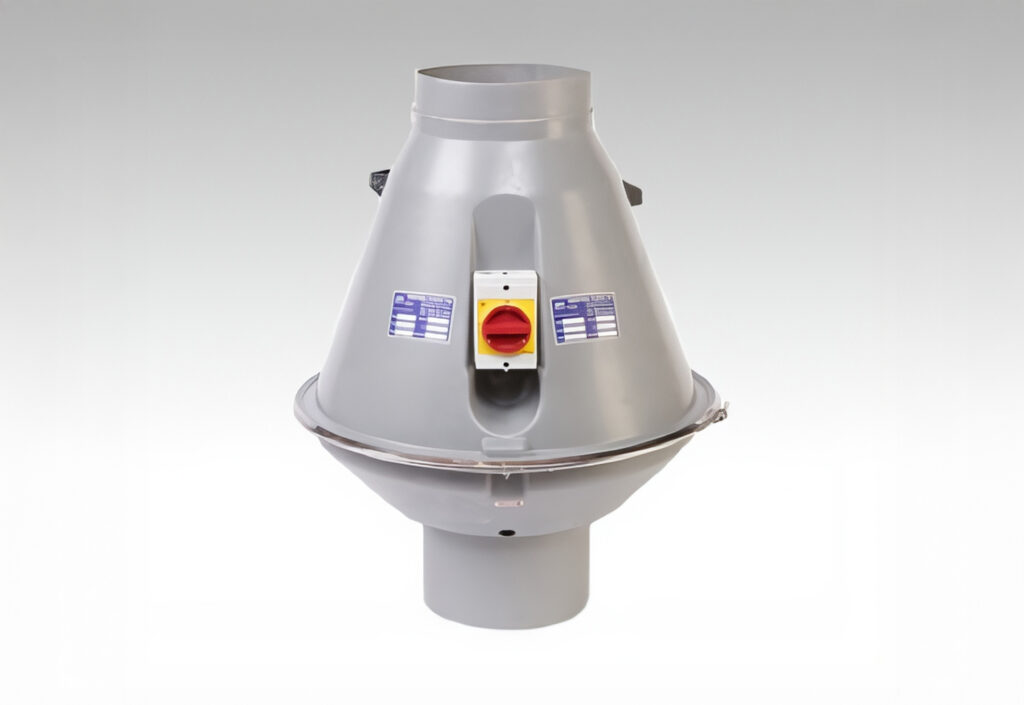

  • CRDV Fans – In-Line Centrifugal

    • 200 to 3,000 CFM, max 4.5" SP
    • Six sizes, vertical or horizontal mounting
    • Available in PP, PPs-EL (spark resistant), XP motors optional
    • Flex connectors and flanges available
    • Stainless steel motor mounts located in the airstream

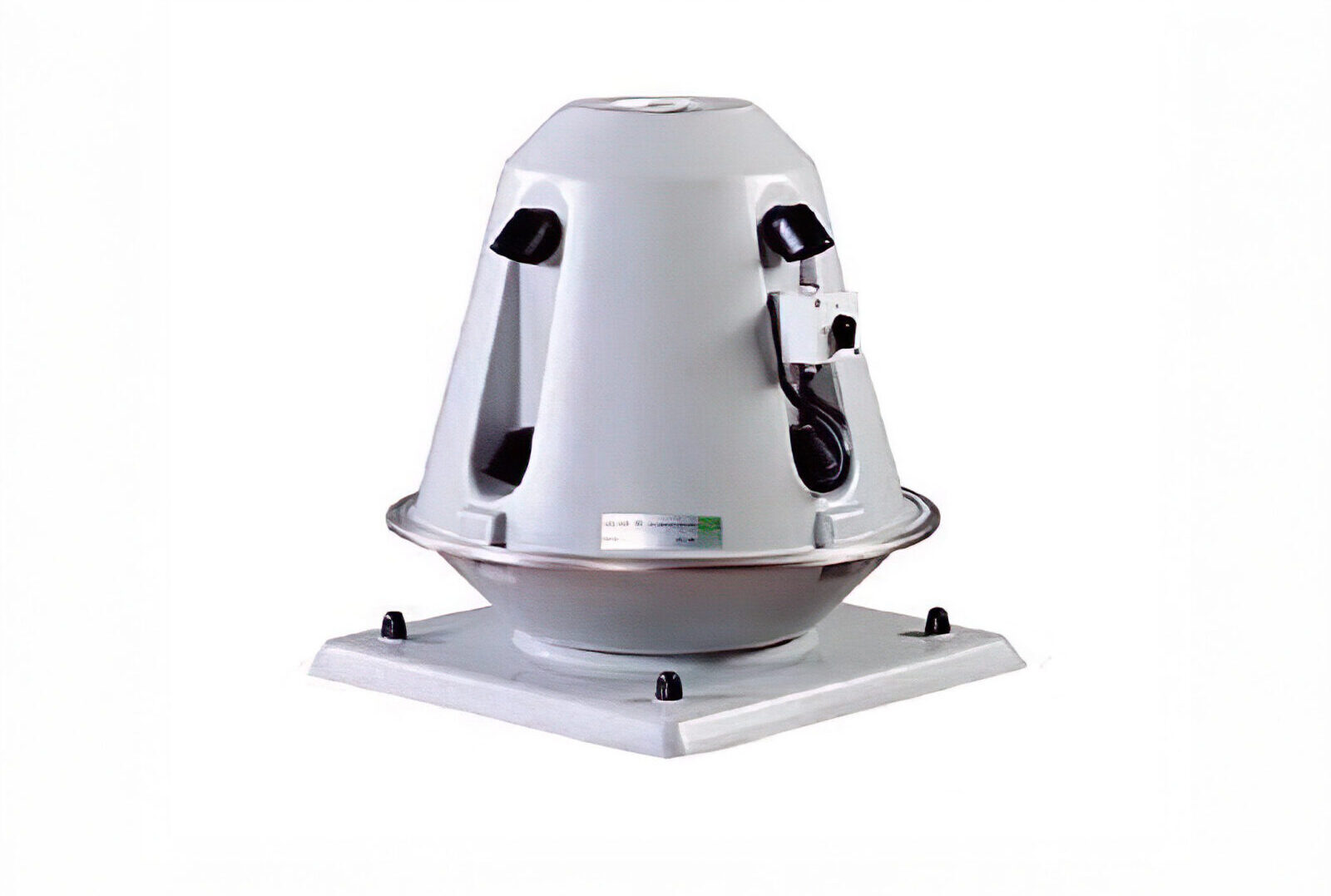

  • CRDVR Fans – Roof-Mounted In-Line Centrifugal

    • Handles 200 to 3,000 CFM, max 4.5" SP
    • Available in six sizes, with roof covers available
    • Available in PP, PPs-EL (spark resistant), with optional XP motors
    • Flex connectors and flanges available
    • Features stainless steel motor mounts located in the airstream

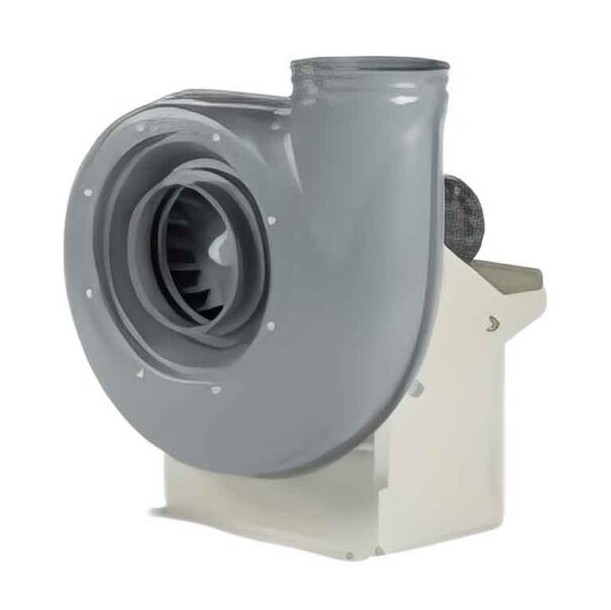

  • Polypropylene Fans

    • Handles 50 to 5,000 CFM
    • Supports up to 10" static pressure

KEY FEATURES
OF PLASTIC FANS:

Suitable for indoor, outdoor, or rooftop installation

Wide range of hub gasket systems, from standard to gastight and water-tight designs

Flexible drive options with direct drive or fan belt drive
configurations

Tested performance and noise levels with optimized
efficiency in accordance with ErP2013 and ErP2015
standards

ATEX-certified models available for use in potentially
explosive areas, including Zones 1 and 2

Ready to Control Your Environment?

Contact Verantis today to implement plastic fans for reliable, corrosion-resistant performance in your facility.
