Centrifugal Fans

If your application requires optimal performance with minimal interruption, powerful Verantis®
centrifugal fans can meet your air handling requirements.

centrifugal-fan-bigVerantis® centrifugal fans blow air perpendicular to the intake, providing greater air pressure for optimum performance with minimal interruption. Our centrifugal fans are designed for long, trouble-free service, ensuring incredible value, and are available in a wide range of models to meet your air handling requirements.

amca-sound-performanceVerantis pretests every fan before shipping, and we evaluate each unit in accordance with AMCA standards... and our CLUB fan lineup is both Sound and Performance certified [click here for all certified Verantis products listings]. We statically and dynamically balance every fan impeller prior to delivery to guarantee smoother, longer runtime.

The bottom line: With Verantis, you get a fan that does the job right, and does it for the long haul. Verantis centrifugal fans are available in nine models, including an in-line centrifugal model.

Centrifugal Blowers: CLUB, CLMR, CLMP, CMHB, CMHR, CMHP, CH, and CHP

We've designed each centrifugal fan model to give you a wide range of choices, ensuring the best possible product for your unique application:

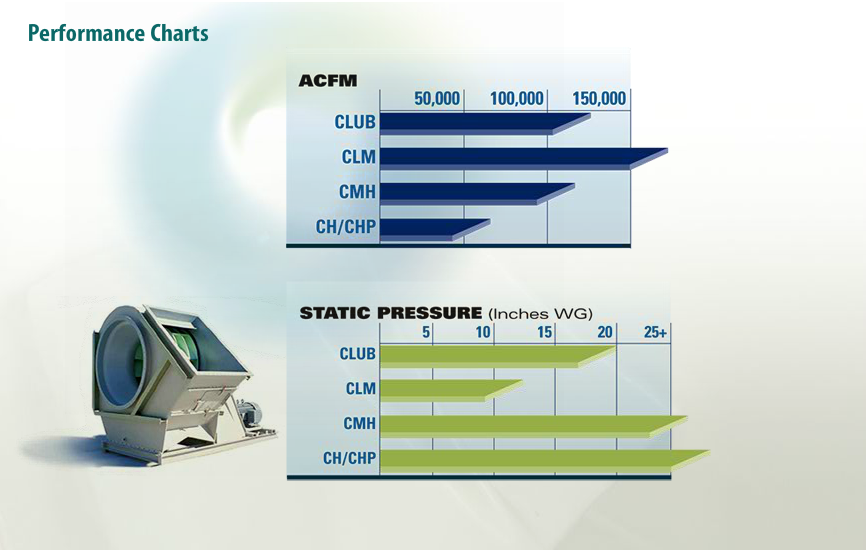

  • club-modelCapacities from 150 CFM to 150,000 CFM at static pressures up to 40" WC
  • Sizes ranging from 6" to 88" diameter
  • Clockwise or counterclockwise rotation
  • Statically and dynamically balanced impellers
  • Extremely low vibration - down to 0.0785 in./sec. for belt drive and direct drive

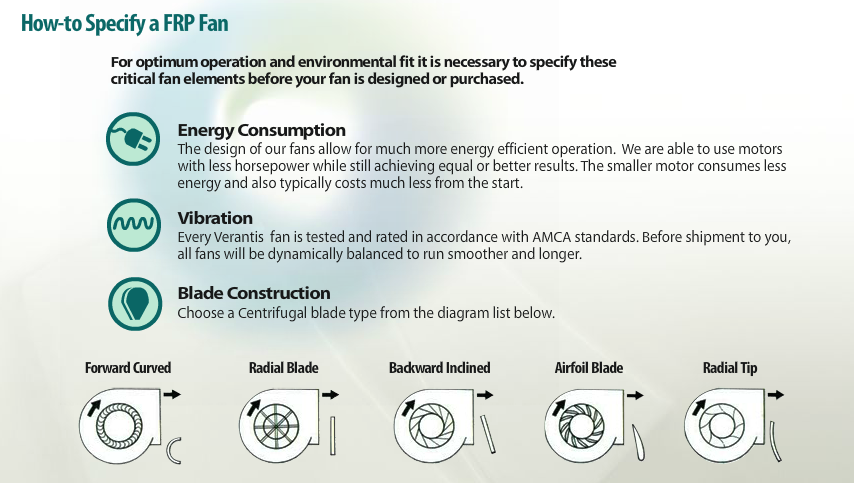

  • Three impeller types: radial, backward-curved, and forward-curve radial tip
  • Lightweight fiberglass reinforced plastic (FRP) construction reduces structural support requirements
  • Spark-resistant designs are available
  • A complete line of accessories, including dampers and variable frequency drives
  • "C" grade glass veil or optional Nexus veil on all surfaces to protect against weathering, fumes spillage, and ultraviolet attack
  • Premium-grade, fire retardant housing and bearing chambers for excellent corrosion-resistance, even in the most aggressive chemical environments
  • Entire fan balanced at the operating point

Model and Blade Types

  • CLUB: Backward Curved Blades (AMCA-certified in performance)
  • CMHB: Backward Curved Blades (AMCA-certified in performance)
  • CMHR: Forward Curved Radial Tip Blades (AMCA-certified in performance for size CMHR-24 and larger)
  • CMHP: Radial Blades
  • CH: Forward Curved Blades
  • CHP: Radial Blades
  • CLMR: Forward Curved Radial Tip Blades
  • CLMP: Radial Blades

In-line Centrifugal Model: FLC

Our in-line centrifugal model fan comes in a variety of sizes to meet the needs of your unique application:

  • flc-modelAvailable in 7 sizes from 18" to 66" diameter
  • Capacities from 200 CFM to 75,000 CFM at static pressures up to 8" WC
  • Clockwise impeller rotation
  • Statically and dynamically balanced impellers
  • Premium-grade, fire retardant housing and bearing chambers for excellent corrosion-resistance, even in the most aggressive chemical environments
  • Entire fan balanced at the operating point

Model and Blade Types

  • FLC: Backward Curved Blades
